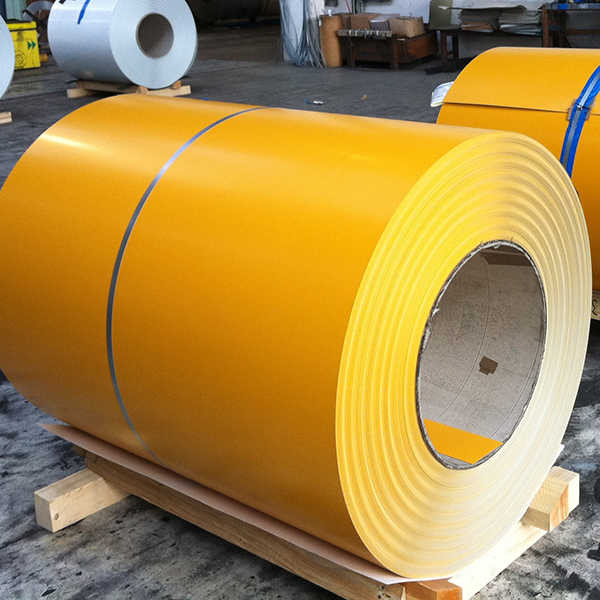

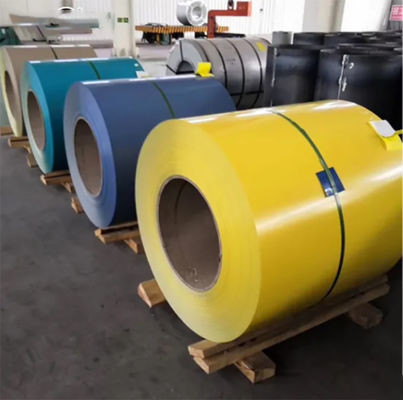

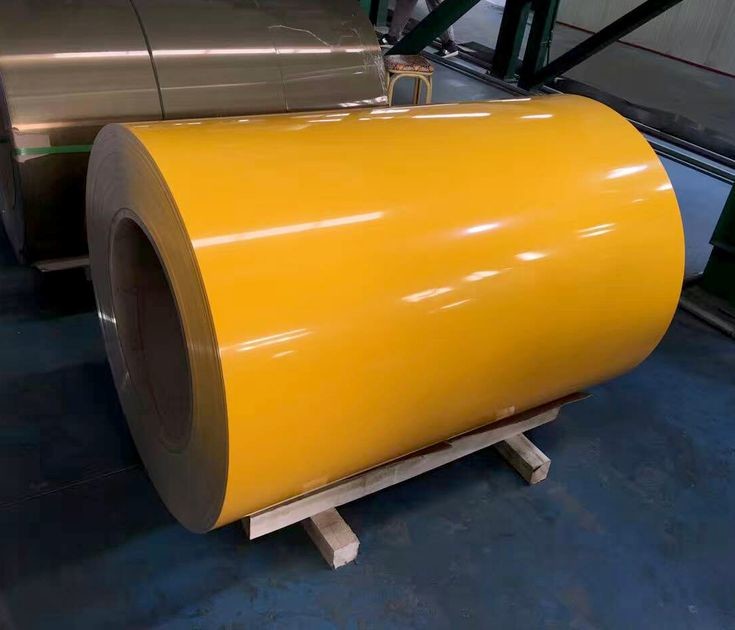

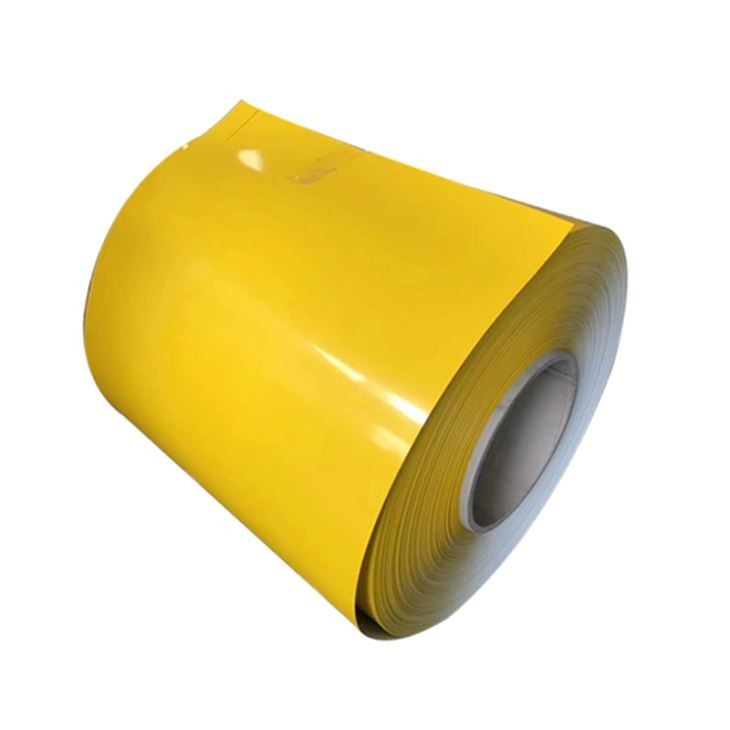

Yellow AZ150 Ppgl Steel Coil Yellow 55% Al Zn Coated Steel PVDF
| Place of Origin | Shandong,China |
|---|---|
| Brand Name | Shandong TISCO |
| Certification | MTC ISO9001 |
| Model Number | Color coated steel coil |
| Minimum Order Quantity | 3 Tons |
| Price | Discuss |
| Packaging Details | PVC+ waterproof paper + strong sea-worthy wooden package<br>If you need samples, we can provide them free of charge |
| Supply Ability | 5000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | PPGL Coil | Standard | AiSi, ASTM |
|---|---|---|---|
| Type | Color Coated Steel Sheet | Technique | Hot Rolled, Prepainted |
| Surface Treatment | Coated | Width | 600mm-1500mm |
| Length | 1000-12000mm | Tolerance | ±3% |
| Application | Manufacturing | ||
| High Light | AZ150 Ppgl Steel Coil,Ppgl Steel Coil Yellow,Yellow 55% Al Zn Coated Steel |
||
Product Description
55% Al-Zn Alloy Coated Steel PVDF Film Prepainted Color Coated AZ150 PPGL Steel Coil
introduce
The full name of PPGL is pre-painted galvalume steel, also known as color coated steel. What are PPGL steel coils used for? PPGL Coil is cold-formed and processed into metal roofing by a roll forming machine, which is mostly used in civil buildings.
Color-coated aluminum coil is one of the top decorative materials. The aluminum alloy has very stable performance and is not
easy to be corroded. By coloring the surface of the aluminum alloy, the surface layer can be guaranteed not to fade for at least
30 years after special treatment.
Specification
| Product | PPGI & PPGL Steel |
| Types | Sheets / Coils / Corrugated |
| Substrate | Galvanized Steel / Galvalume Steel |
| Zn/AZ Coating | Z30~275, AZ30~150 |
| Thickness | 0.18-1.2mm |
| Width | 900~1250 mm |
| Coil ID | 508/610 mm |
| Coating Types | PE, SMP, HDP, PVDF |
Chemical Composition
| Grade | C≤ | Mn | P≤ | S≤ | Si≥ | Cr≤ | Cu≤ | Mo≤ | Ni≤ | V≤ |
| A | 0.25 | 0.27-0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| B | 0.30 | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| C | 0.35 | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
PPGI & PPGL Advantages
The coating of the color-coated steel sheet not only protects but also increases the decoration, and the color is
durable and not easy to fade. The surface of different types of color-coated boards can also be embossed and
printed with different types of colors and surface structures.
Color-coated steel sheet also has a very advantageous advantage in terms of architecture and interior decoration,
which can play a role in fire prevention. The coating surface can maintain gloss even under high temperature baking,
and there is no change in surface color.
In terms of processing, the surface coating of high-quality color-coated steel sheets does not fall off after bending or stamping, and the coating quality is far more uniform, more stable, and more ideal than single-body spraying on the
formed metal surfaIn terms of use time, the color-coated steel sheet is obviously more durable than the traditional steel sheet, and it can maintain gloss and rust for more than 20-30 years
